Fast Auroral Snapshot Explorer (FAST)

The routines in this module can be used to load data from the Fast Auroral Snapshot Explorer (FAST) mission.

Fluxgate Magnetometer (DCB)

pyspedas.fast.dcb(trange=['2001-09-05', '2001-09-06'], datatype='', level='k0', suffix='', get_support_data=False, varformat=None, varnames=[], downloadonly=False, notplot=False, no_update=False, time_clip=False)

This function loads data from the Fluxgate Magnetometer

Parameters
  • trange (list of str) – time range of interest [starttime, endtime] with the format ‘YYYY-MM-DD’,’YYYY-MM-DD’] or to specify more or less than a day [‘YYYY-MM-DD/hh:mm:ss’,’YYYY-MM-DD/hh:mm:ss’]

  • datatype (str) – Data type; Valid options:

  • suffix (str) – The tplot variable names will be given this suffix. By default, no suffix is added.

  • get_support_data (bool) – Data with an attribute “VAR_TYPE” with a value of “support_data” will be loaded into tplot. By default, only loads in data with a “VAR_TYPE” attribute of “data”.

  • varformat (str) – The file variable formats to load into tplot. Wildcard character “*” is accepted. By default, all variables are loaded in.

  • varnames (list of str) – List of variable names to load (if not specified, all data variables are loaded)

  • downloadonly (bool) – Set this flag to download the CDF files, but not load them into tplot variables

  • notplot (bool) – Return the data in hash tables instead of creating tplot variables

  • no_update (bool) – If set, only load data from your local cache

  • time_clip (bool) – Time clip the variables to exactly the range specified in the trange keyword

Return type

List of tplot variables created.

Example

import pyspedas
from pytplot import tplot

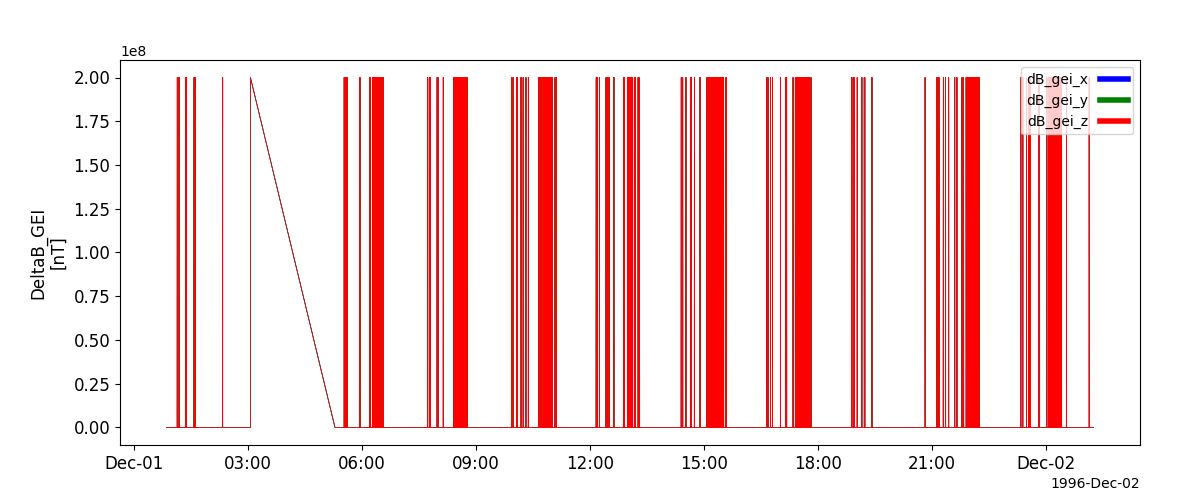

dcb_vars = pyspedas.fast.dcb(trange=['1998-09-05', '1998-09-06'])
tplot('')
_images/fast_dcb.png

Search-coil Magnetometer (ACB)

pyspedas.fast.acb(trange=['1998-01-05', '1998-01-06'], datatype='', level='k0', suffix='', get_support_data=False, varformat=None, varnames=[], downloadonly=False, notplot=False, no_update=False, time_clip=False)

This function loads data from the Search-coil Magnetometer

Parameters
  • trange (list of str) – time range of interest [starttime, endtime] with the format ‘YYYY-MM-DD’,’YYYY-MM-DD’] or to specify more or less than a day [‘YYYY-MM-DD/hh:mm:ss’,’YYYY-MM-DD/hh:mm:ss’]

  • datatype (str) – Data type; Valid options:

  • suffix (str) – The tplot variable names will be given this suffix. By default, no suffix is added.

  • get_support_data (bool) – Data with an attribute “VAR_TYPE” with a value of “support_data” will be loaded into tplot. By default, only loads in data with a “VAR_TYPE” attribute of “data”.

  • varformat (str) – The file variable formats to load into tplot. Wildcard character “*” is accepted. By default, all variables are loaded in.

  • varnames (list of str) – List of variable names to load (if not specified, all data variables are loaded)

  • downloadonly (bool) – Set this flag to download the CDF files, but not load them into tplot variables

  • notplot (bool) – Return the data in hash tables instead of creating tplot variables

  • no_update (bool) – If set, only load data from your local cache

  • time_clip (bool) – Time clip the variables to exactly the range specified in the trange keyword

Return type

List of tplot variables created.

Example

import pyspedas
from pytplot import tplot

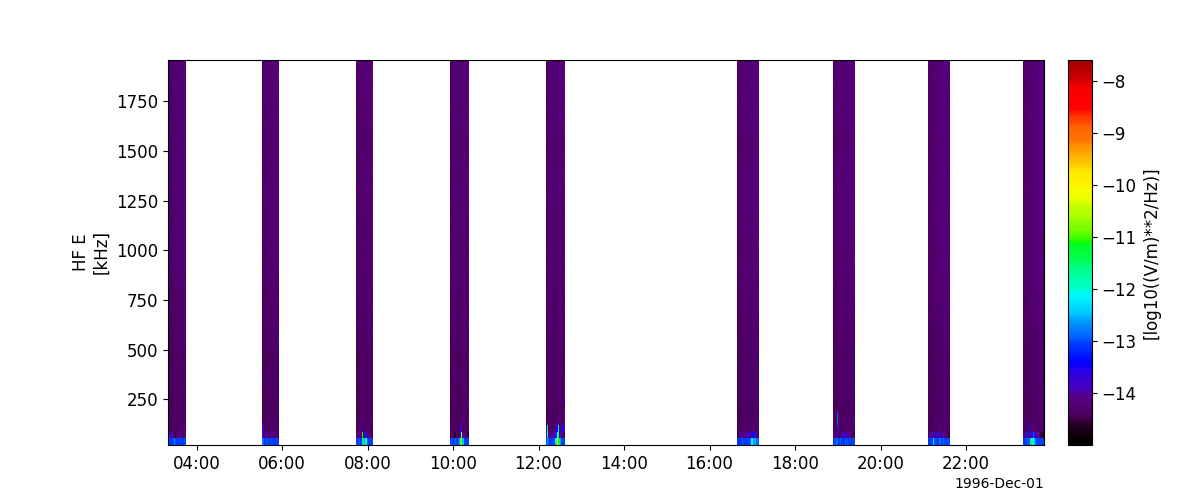

acb_vars = pyspedas.fast.acb()
tplot('HF_E_SPEC')
_images/fast_acb.png

Time-of-flight Energy Angle Mass Spectrograph (TEAMS)

pyspedas.fast.teams(trange=['1998-09-05', '1998-09-06'], datatype='', level='k0', suffix='', get_support_data=False, varformat=None, varnames=[], downloadonly=False, notplot=False, no_update=False, time_clip=False)

This function loads data from the Time-of-flight Energy Angle Mass Spectrograph (TEAMS)

Parameters
  • trange (list of str) – time range of interest [starttime, endtime] with the format ‘YYYY-MM-DD’,’YYYY-MM-DD’] or to specify more or less than a day [‘YYYY-MM-DD/hh:mm:ss’,’YYYY-MM-DD/hh:mm:ss’]

  • datatype (str) – Data type; Valid options:

  • suffix (str) – The tplot variable names will be given this suffix. By default, no suffix is added.

  • get_support_data (bool) – Data with an attribute “VAR_TYPE” with a value of “support_data” will be loaded into tplot. By default, only loads in data with a “VAR_TYPE” attribute of “data”.

  • varformat (str) – The file variable formats to load into tplot. Wildcard character “*” is accepted. By default, all variables are loaded in.

  • varnames (list of str) – List of variable names to load (if not specified, all data variables are loaded)

  • downloadonly (bool) – Set this flag to download the CDF files, but not load them into tplot variables

  • notplot (bool) – Return the data in hash tables instead of creating tplot variables

  • no_update (bool) – If set, only load data from your local cache

  • time_clip (bool) – Time clip the variables to exactly the range specified in the trange keyword

Return type

List of tplot variables created.

Example

import pyspedas
from pytplot import tplot
teams_vars = pyspedas.fast.teams(trange=['1998-09-05', '1998-09-06'])
tplot(['H+', 'H+_low', 'H+_high'])
_images/fast_teams.png
