Cluster Analysis Tools

Particle Tools

pyspedas.projects.cluster.cluster_get_codif_dist(tname, probe=None)[source]

Returns 3D particle data structures containing Cluster CODIF data for use with pySPEDAS particle routines.

Input

tname: str
tplot variable name containing the CODIF distribution data Example: ‘ions_3d__C1_CP_CIS_CODIF_HS_H1_PSD’

Parameters:: probe (str) – Spacecraft probe #
returns:: 3D particle data structure(s) containing Cluster CODIF distribution functions
rtype:: list of dict

pyspedas.projects.cluster.cluster_get_hia_dist(tname, probe=None)[source]

Returns 3D particle data structures containing Cluster HIA data for use with SPEDAS particle routines.

Input

tname: str
tplot variable name containing the HIA distribution data Example: It should have the format [time, psd, theta, phi, energy]

Parameters:: probe (str) – Spacecraft probe #
returns:: 3D particle data structure(s) containing Cluster HIA distribution functions
rtype:: list of dict

Example

import pyspedas
trange = ['2002-04-18 12:00:00', '2002-04-18 18:00:00']
event = '2002-04-18 17:30:03'
probe = '1'
pyspedas.projects.cluster.cis(trange, probe=probe, option='psd_h1', get_support_data=True)
pyspedas.projects.cluster.cis(trange, probe=probe, varformat='V_p_xyz_gse__C1_PP_CIS')
pyspedas.projects.cluster.fgm(trange, probe=probe, datatype='cp')
dist = pyspedas.projects.cluster.cluster_get_codif_dist('ions_3d__C1_CP_CIS_CODIF_HS_H1_PSD', probe)

slice_xy = pyspedas.slice2d(dist, time=event, rotation='xy', interpolation='2d')
slice_xz = pyspedas.slice2d(dist, time=event, rotation='xz', interpolation='2d')
slice_yz = pyspedas.slice2d(dist, time=event, rotation='yz', interpolation='2d')

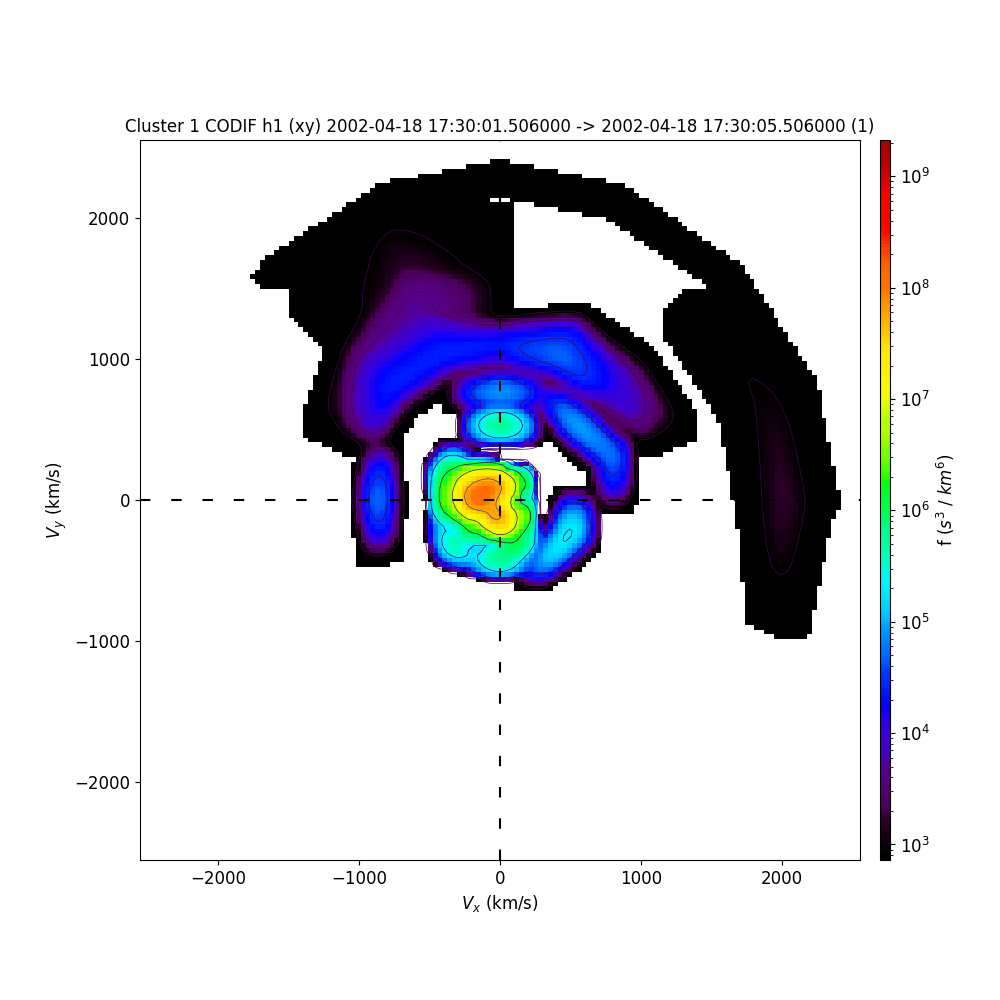

pyspedas.slice2d_plot(slice_xy, save_png='cluster_codif_slice_xy.png')
